FTTH BOX 4 CORE

FTTH Indoor Outdoor Wall Mount 4 8 12 16 24 48 Core Port Fiber Optic Termination Box, Telecom Fiber Cable Distribution Box IP65

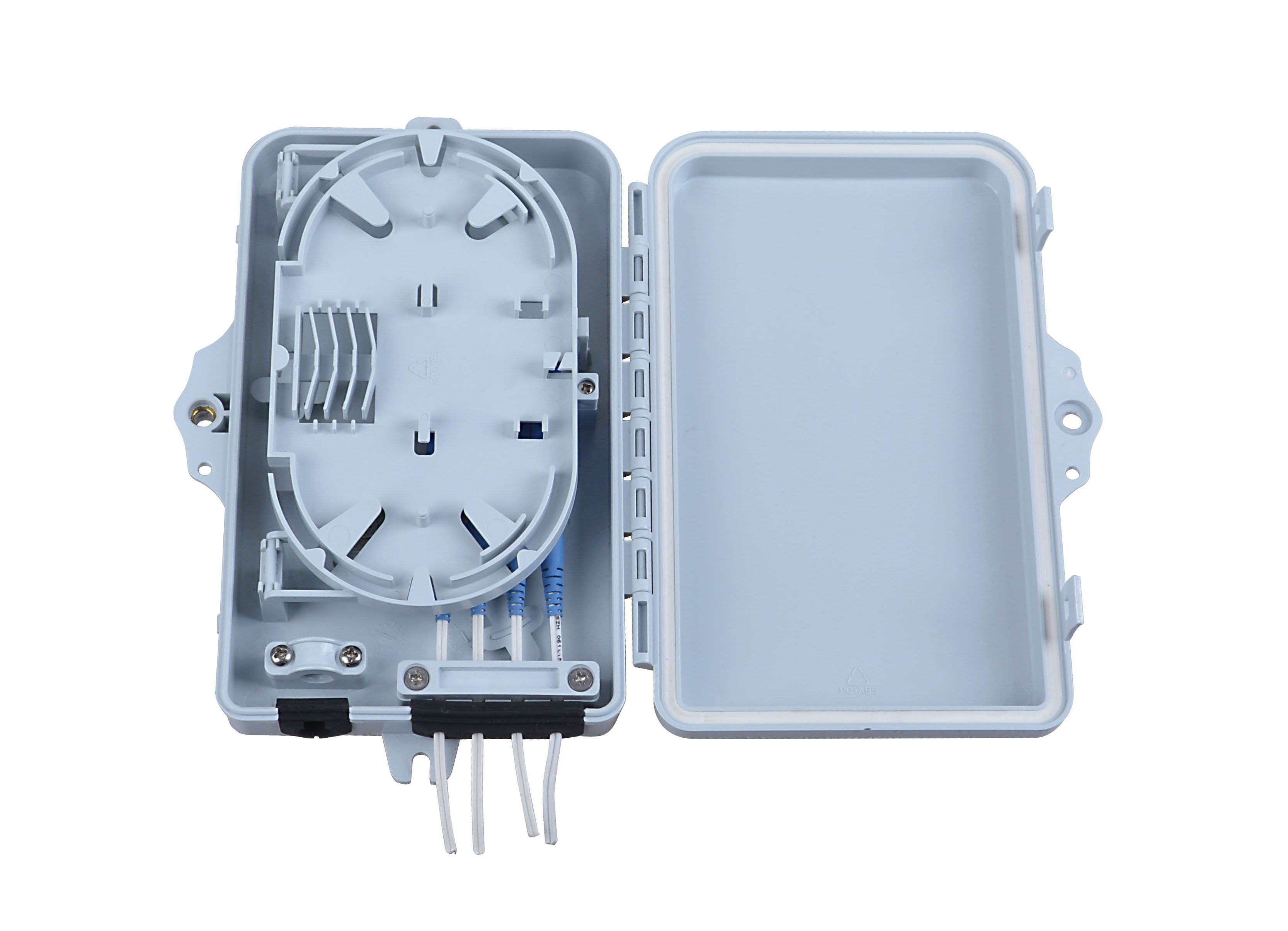

FTTH Box Our terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features:

1. Non-sealed type, fixed by bolt.
2. Two cable ports for indoor cable connection
3. Easy for operation, has high containing ability for surplus pigtails
4. Can connect/reconnect to adapters more than 200 times
5. Connector for FC, SC, ST or LC

Applications

1.Optical LAN & WAN & CATV
2.FTTH project & FTTX Deployments
3.Broadband High-bit rate data transmission
4.Active device terminations
5.Testing instruments
6.Optical fiber communication networks
7.PON Networks
8.Optical Signal Distribution

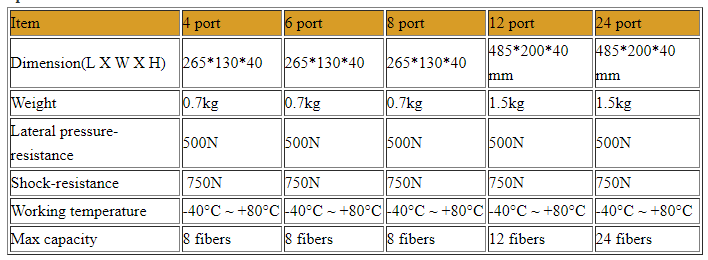

Specification
